SPECIFICATIONS

This electric outboard motor is suitable for small boats of 6.6-13.1ft and up to 1322.7lbs, and is widely used in fisheries, aquaculture, outdoor sightseeing and other fields.

Specifications
Material: Stainless Steel + Plastic
Color: Black, White
Model: ET65L
Fuel Type: Electric
Control Handle: Telescopic Type
Speed Control: F5-R2
Motor Type: Brush Pure Copper Motor
Number of Propeller Blades: 3
Speed Regulation: Forward 5 Gears, Reverse 2 Gears
Thrust: 30kg/66lbs
Rated Voltage: 12V
Rated Speed: 1420R/min
Rated Current: 55A
Rated Power: 660W
Maximum Speed: 6-8km/h(3.7-5mile/h)
Propeller Model: 3 leaves, 20cm/7.87in
Noise: 50db
Clamping Spacing: 9cm/3.54in
Suitable Ship Length: 2-4m/6.6-13.1ft

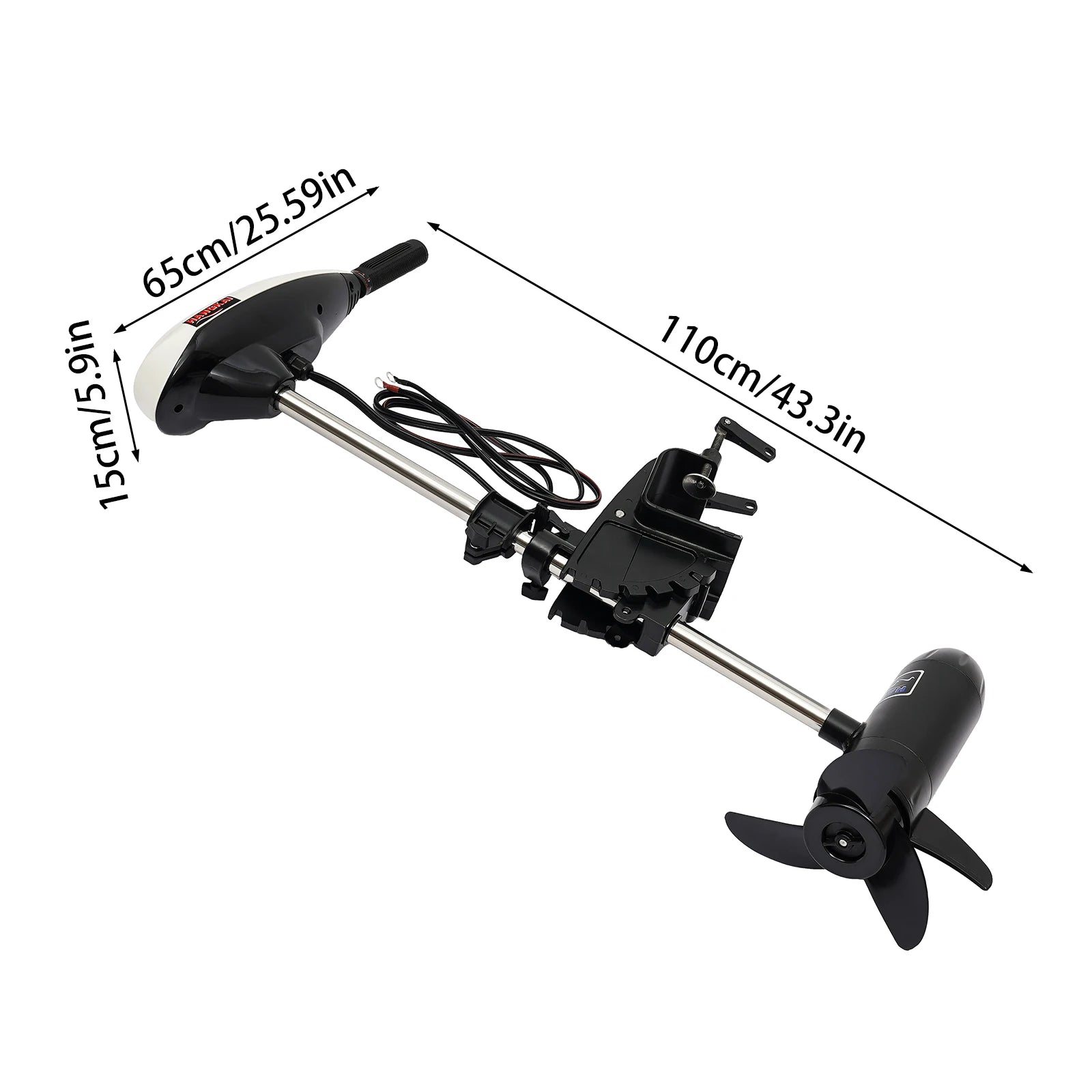

Handle Length: 50-65cm/19.68-25.6in
Packing Size: 104*57*17cm/40.94*22.44*6.69in
Gross Weight: 11.35kg/25.02lbs
Net Weight: 10kg/22lbs
Load Capacity: 600kg/1322.7lbs

Package Included
1* Electric Outboard Motor
1* English Manual
1* Propeller
All Needed Accessories

Notes
1. The 12V 100Ah battery can be used for 3 hours, you can choose the corresponding ampere hour battery according to the usage time. Please note that the battery is not included in the package, and you can buy it at the local battery store.
2. Please do not start the motor on the shore where there is a lack of water. Even if you want to test the motor, you should do it in the river!
3. Remember to wash the motor using fresh water after using it in salt water as it can greatly reduce the possibility of corrosion.
4. When shifting, please step by step and do not accelerate suddenly, otherwise, the service life of the product will be affected.
5. Please note that the driving speed will change due to different ship types, loads, and natural conditions.
6. Please remove the debris around the propeller before replacing the propeller. Always disconnect the power supply of the motor
7. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
