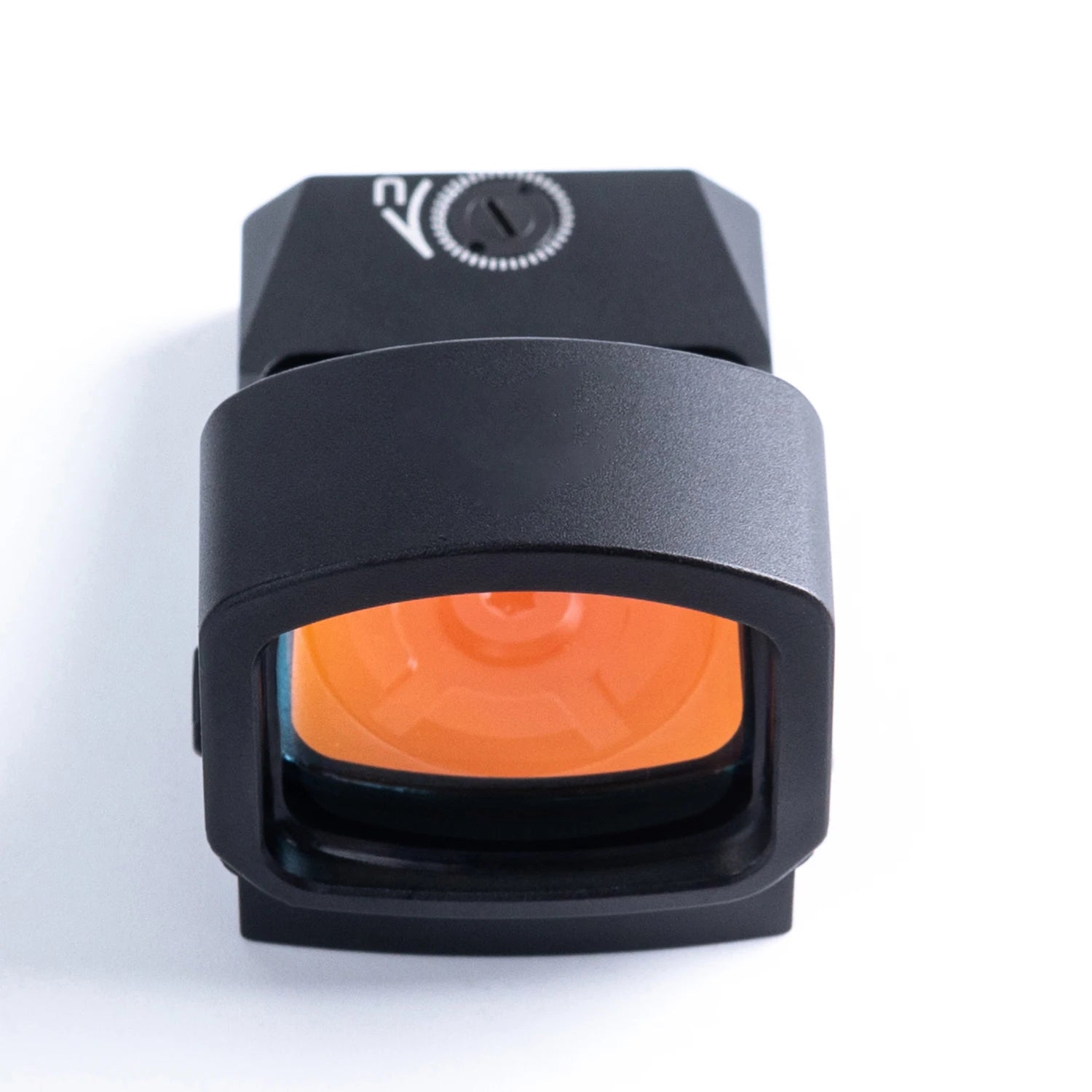

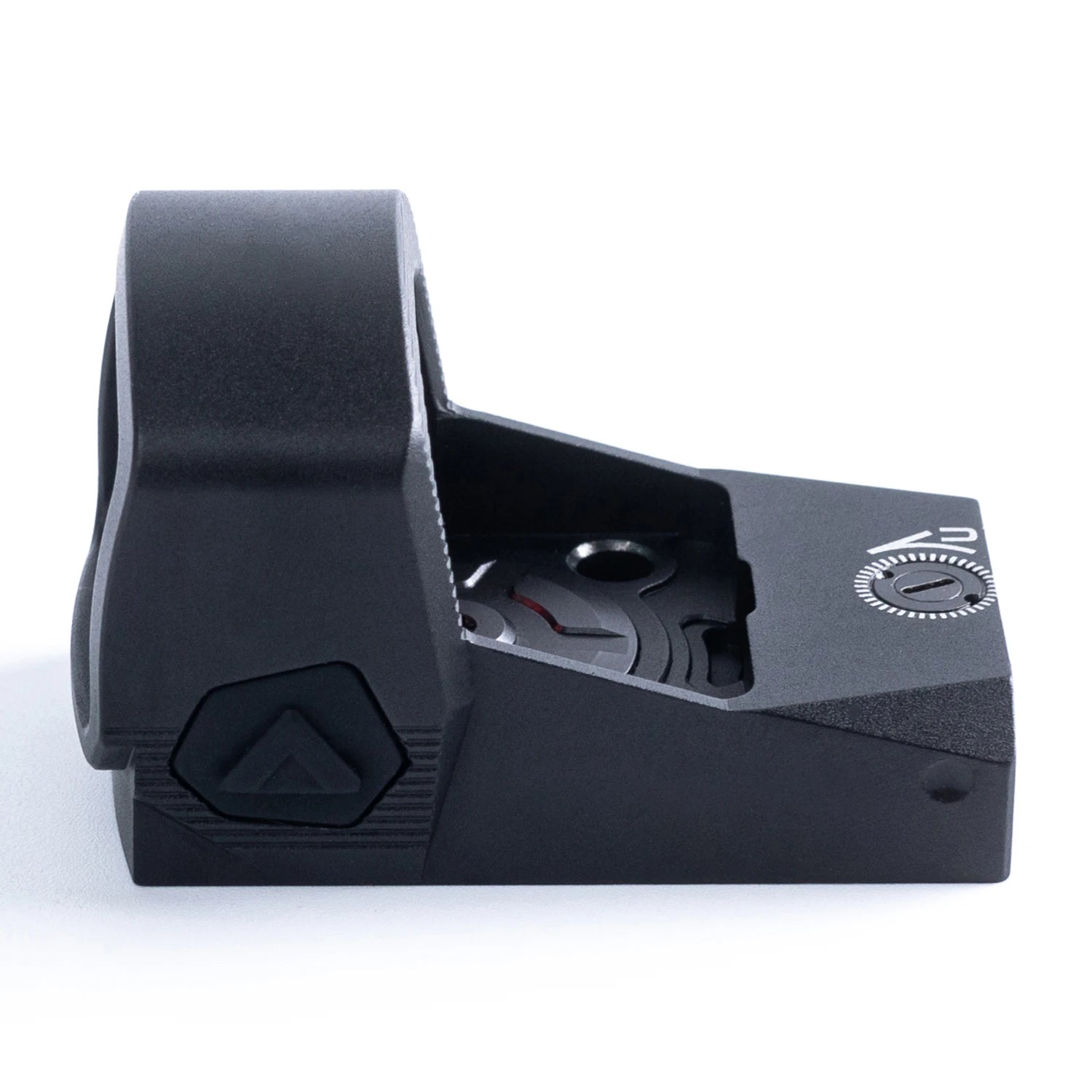

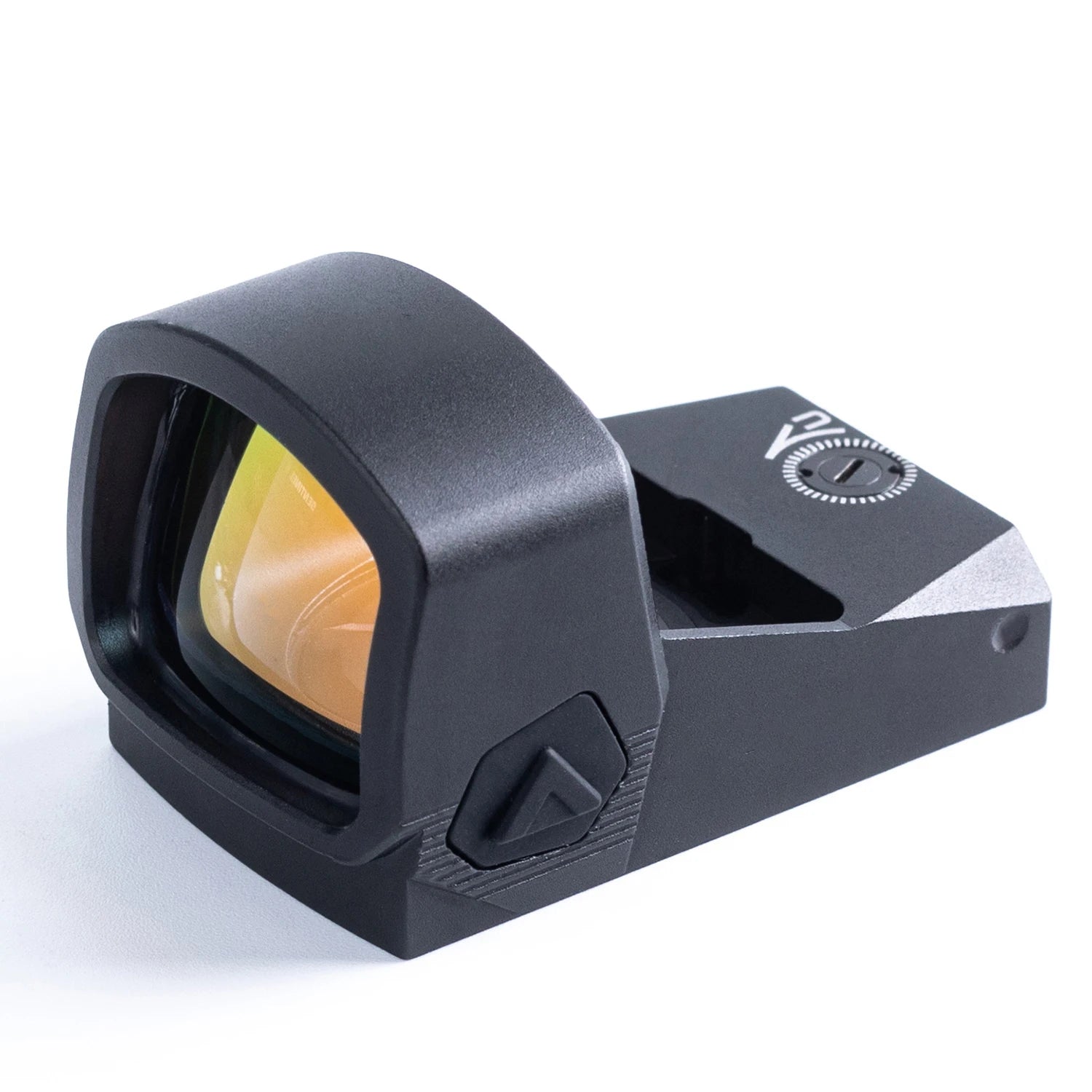

The Liberty ll dot sight, with its innovative design and construction, takes your shooting experience to the next level. Optimized for competition and long gun use, Liberty ll includes features such as a 3 MOA dot or multi-reticle emitter, a slim profile, top loaded battery, durable body, and an expansive 24mm window.
Features include:
Shake N' Wake
24mm Window
Universal RMR footprint
7075-T6 aluminum construction
3 MOA dot or Muli-Reticle emitter
Anti-glare window serrations

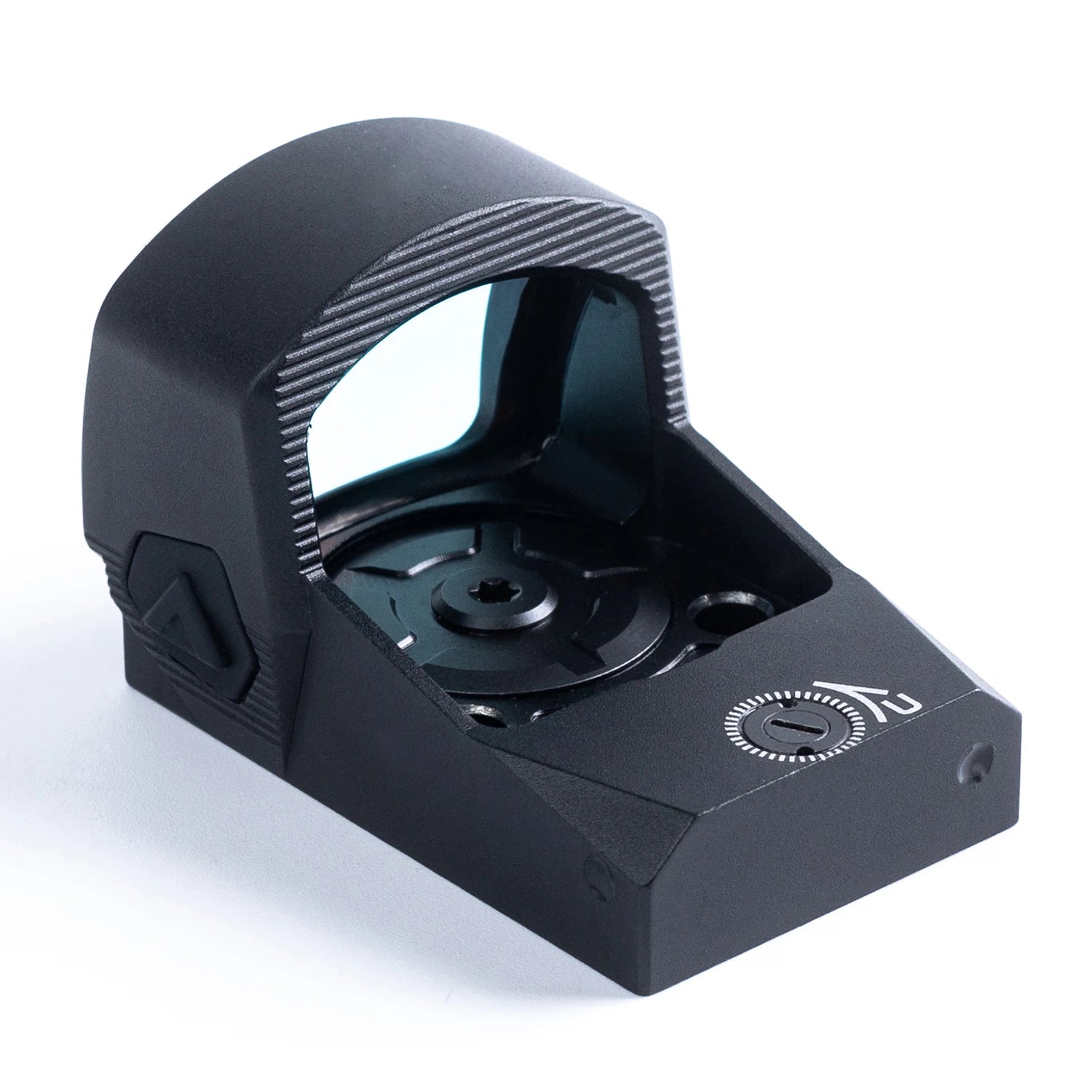

BATTERY INSTALLATION
1.Remove the battery cap located on the top of the housing using a T10 Torx wrench or the included S-wing tool.
2.Insert the CR1632 battery with the "+" side facing up into the battery compartment. Then place the battery cap back on and screw clockwise until tight.
3. Confirm that the optic powers on by holding the brightness UP button.
POWER ON/OFF
1. Press the brightness UP button to turn on the optic.
2. Hold the brightness DOWN button for 3 seconds to manually turn off the optic.
When the optic is powered back on, it will automatically return to the previous brightness level.
SHAKE N' WAKE
Liberty ll features Shake N' Wake, a power-saving function that automatically turns off the illumination after about four minutes of no movement. The optic immediately "wakes up" as soon as movement is detected, without requiring the user to press any button. This feature is seamlessly integrated into the optics function and cannot be activated or deactivated as a separate mode.
BRIGHTNESS
Liberty ll has 10 brightness settings that can be adjusted using the up and down arrow buttons on the sides of the unit. The first two settings are NV compatible. Settings 3 to 5 ensure adequate reticle contrast in low light environments, while settings 6 to 8 are suitable for indoor ranges and home defense. Settings 9 and 10 are daylight bright and should be used only in very bright conditions to avoid unwanted glare and reticle bloom.
RETICLE - 3 MOA
Liberty ll is offered in either a 3 MOA or a multi-reticle variant. The 3 MOA will have red illumination, All Liberty ll models use MOA subtensions. One Minute of Angle is equivalent to approximately 1" at 100 yards, or .75" at 75 yards, .50" at 50 yards, etc.
3 MOA is 1.5" at 50 yards, or 3" at 100 yards.

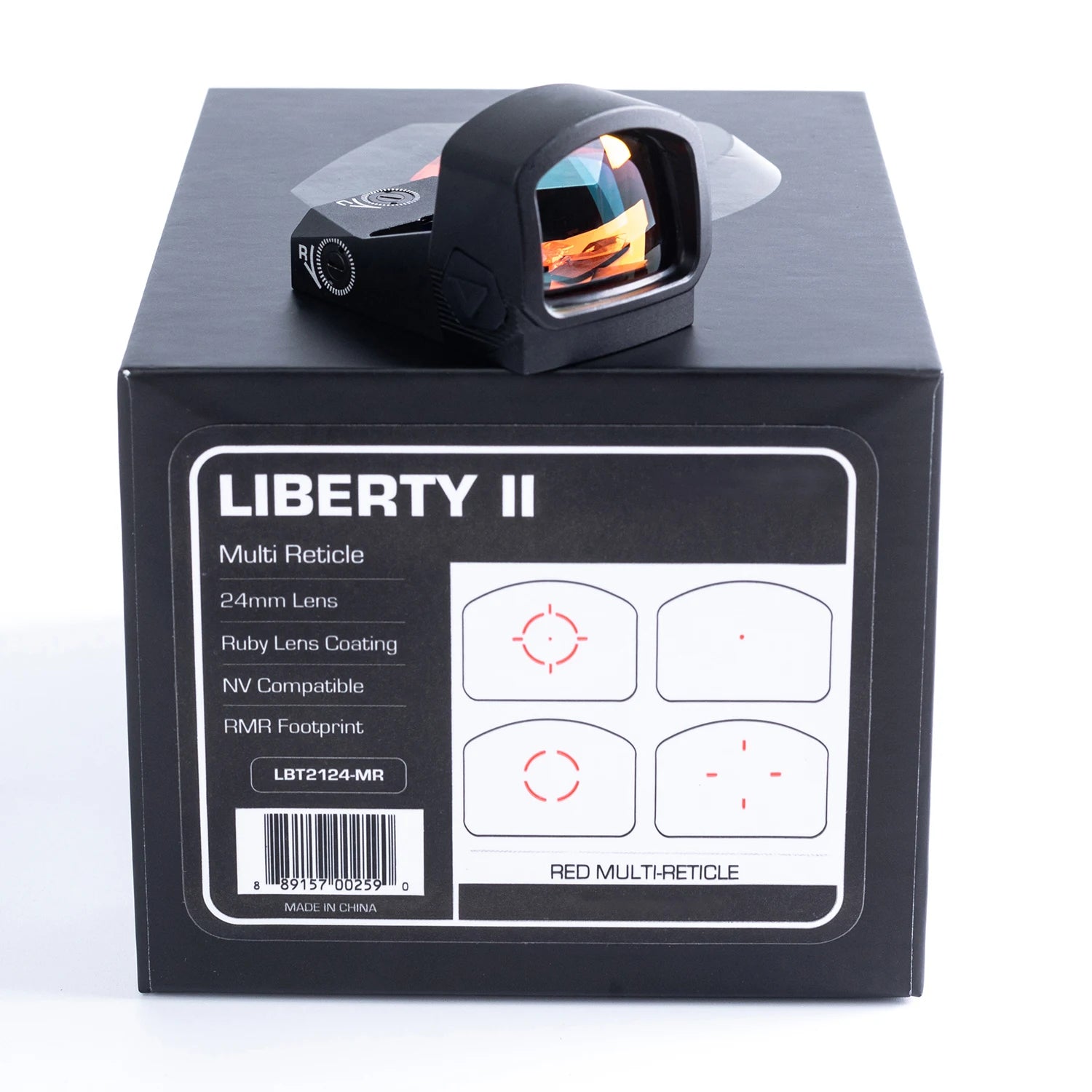

MULTIRETICLE
The multi-reticle variant provides 4 reticle options, including a 3 MOA center dot.
At 50 yards, a 3 MOA dot is 1.5", or 3 MOA is 3" at 100 yards.
